Introduction to Ohm's Law
Ohm's Law stands as one of the most fundamental principles in electrical engineering, providing the mathematical foundation for understanding how voltage, current, and resistance interact in electrical circuits.
Ohm's Law Formula
V = I × R
Where V is voltage (volts), I is current (amperes), and R is resistance (ohms).
Try Our Ohm's Law CalculatorThe Three Fundamental Quantities
Voltage (V) - The Electrical Pressure
Voltage represents the electrical potential difference between two points in a circuit. Think of voltage as electrical pressure that pushes electrons through a conductor.
Current (I) - The Flow of Electrons
Current represents the rate of electron flow through a conductor. One ampere equals approximately 6.24 × 10¹⁸ electrons passing through a cross-section per second.
Resistance (R) - The Opposition to Current Flow
Resistance represents the opposition to current flow in a circuit. Every material has some resistance, converting electrical energy into heat. Use our resistance unit converters to work with different resistance scales.
Mathematical Relationships

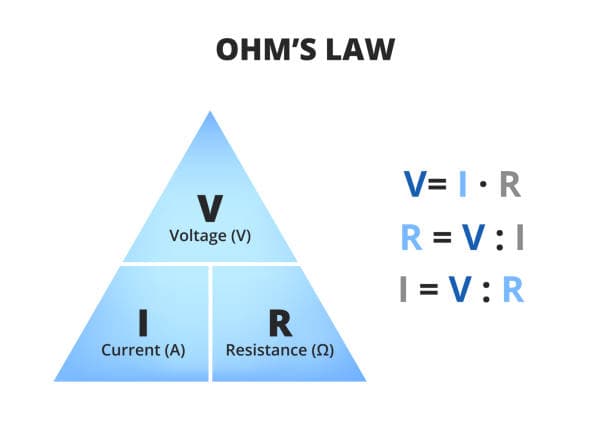

Ohm's Law can be expressed in three equivalent forms:
- V = I × R - Calculate voltage when you know current and resistance
- I = V / R - Calculate current when you know voltage and resistance
- R = V / I - Calculate resistance when you know voltage and current
Use our specialized calculators for these conversions:Ohms to Volts,Ohms to Amps, andVolts to Ohms.
Power Relationships
Ohm's Law extends to power calculations:
- P = V × I - Basic power equation
- P = I² × R - Power in terms of current and resistance
- P = V² / R - Power in terms of voltage and resistance
Our amp to watt converter andwatt to amp converter make these calculations simple.
Practical Applications
Circuit Analysis and Design
Ohm's Law serves as the foundation for analyzing electrical circuits. In series circuits, current remains constant while voltage divides. In parallel circuits, voltage remains constant while current divides.
Component Selection
Proper component selection relies on Ohm's Law calculations. Resistors must be chosen for both resistance value and power rating. Our ohms to watts calculator helps determine power dissipation requirements.
Real-World Examples
Example 1: LED Current Limiting
Problem: Calculate resistor value for 20mA LED current with 9V supply and 2.1V LED drop.
Solution: R = (9V - 2.1V) / 0.02A = 345Ω
Example 2: Heating Element
Problem: Design 1500W heating element for 240V supply.
Solution: R = V² / P = (240)² / 1500 = 38.4Ω
Advanced Concepts
Non-Linear Components
While Ohm's Law applies to linear resistive components, many real-world components like diodes and transistors exhibit non-linear behavior.
AC Circuit Considerations
In AC circuits, resistance is replaced by impedance, which includes reactive components. Ourohms to farads converter helps with capacitive calculations.
Modern Applications
Digital Circuit Design
Even in digital systems, Ohm's Law remains crucial for pull-up resistors, current limiting, and power management.
Power Electronics
Modern power systems minimize resistive losses through careful analysis using Ohm's Law principles.
Conclusion
Ohm's Law remains as relevant today as when first formulated. Understanding these fundamental relationships enables engineers to create efficient, reliable electrical systems.
